Electric Winch Customized Design Base on Different Application and Duty Group
| Place of Origin: | Zhejiang, China |
| Brand Name: | Nante |
| Model Number: | JM10t |
| Certification: | ISO9001:2008 |
| Max. Lifting Load | 10t |
| Minimum Order Quantity: | 1 |
| Price: | N/A |
| Packaging Details: | Naked |
| Delivery Time: | Within 2 months |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 400 Sets per Year |
Nante manufactures and exports superior quality lifting winch for its valuable clients based at several parts of the world. We have 18 years of winch manufacture experience, with refined technology. Electric hoisting winding engine is a device consisting of a horizontal cylinder turned back by a crank on which a cable or a rope wind is bound. These are compact and light weight material handling and lifting equipments, suitable for application on cranes, davits and s.
Electric Winches are widely used in the following applications:
1. Cranes
2. Davits
3. s
4. Marine
5. Punching driver
6. Construction Site and Port
Features:
1. The final drive gears are made of heat treated carbon steel that provides it a great strength.
2. It has an emergency crank handle.
3. Our product is available in AC and DC models also.
4. The front plate is made of stainless steel that provides a great rust resistance.
5. The die formed base of the equipment helps in quick mounting applications.

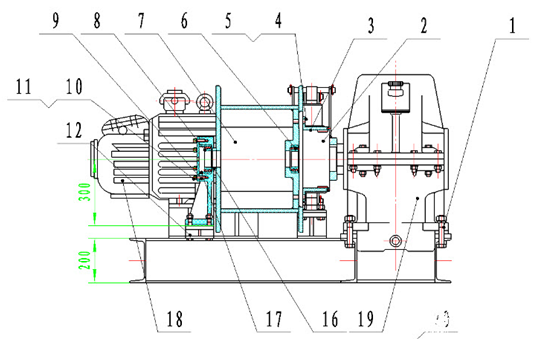

General Drawing or Sketch or Draft Drawing
Technical Data
| Model | JM10 | JM12 | JM15 | JM18 | JM20 | JM25 |
| Max Load (KN) | 100 | 120 | 150 | 180 | 200 | 250 |
| Rated Rope Speed (m/min) | 9 | 10 | 11.5 | 10 | 10 | 9 |
| Rope Dia. (mm) | φ 31 | φ 34 | φ 40 | φ 36 | φ 42 | φ 44 |
| Length of Rope(m) | 500 | 650 | 800 | 600 | 600 | 400 |
| Motor Model | YZR225M-8 | YZR250M2-8 | YZR280M-6 | YZR280S-8 | YZR280M-8 | YZR280M-8 |
| Power (kw) | 22 | 37 | 45 | 45 | 45 | 55 |
| Figure | Length(mm) | 2170 | 2020 | 2540 | 3040 | 3140 | 3140 |
| Width(mm) | 3070 | 2300 | 2570 | 2350 | 2400 | 2400 |
| Height(mm) | 1300 | 1600 | 1770 | 2100 | 2160 | 2100 |
| Total Weight (kg) | 3500 | 5000 | 7500 | 9000 | 10000 | 11500 |
